GMacros Kapak Makroları

Mobilya kapak/ön yüzleri için 10 makro: düz, çerçeveli, camlı ve panjurlu kapaklar; kulp/menteşe delikleri, parmak kanalı, kenar bandı ve ölçü hesabı.

Alphacam-based parametric cabinet door macros: plain, framed, glazed and louvred doors from a dimension list; handle, hinge (Ø35) and push-to-open holes; finger groove, edgeband allowance and door size calculation. For membrane, balloon, lacquered and wood door production on CNC routers, without leaving Alphacam.

Description

Mobilya kapak/ön yüzleri için 10 makro: düz, çerçeveli, camlı ve panjurlu kapaklar; kulp/menteşe delikleri, parmak kanalı, kenar bandı ve ölçü hesabı. Satın alma sonrası panelden indirilen tek dosya kurulumla Alphacam başlangıç klasörüne kurulur; ilk açılışta lisans anahtarı girilir ve sunucudan doğrulanır (çevrimdışı çalışmaz).

Features

Gerçekte nasıl görünür

Technical geometry drawn by the macro

10 kapak makrosu, tek eklenti ve tek anahtar

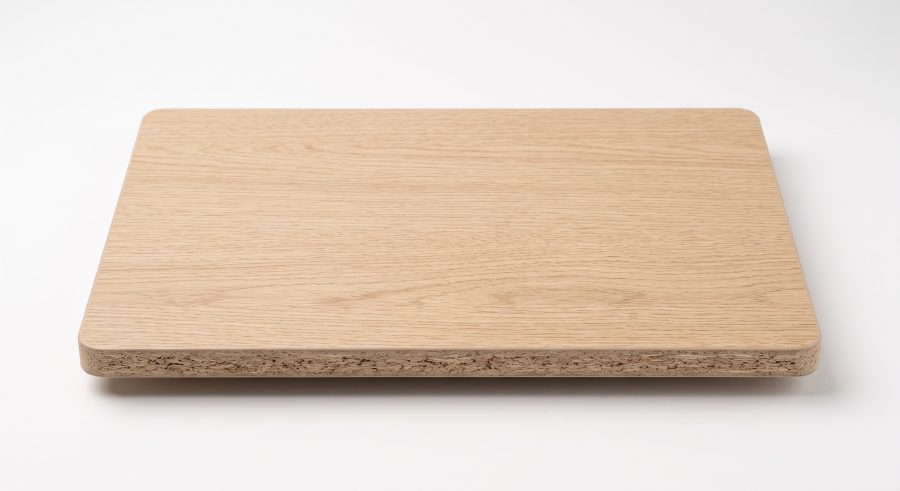

Düz · çerçeveli · camlı · panjurlu kapak
Kulp ve menteşe delikleri
Parmak kanalı ve kenar bandı
Ölçü girişiyle tek tıkla çizim
1 yıl güncelleme dahil
Alphacam 2019 R1 ve üzeri

Each tool's description, features and animated preview are on the macro package page.

The values each tool of this product asks for, the steps to use it and videos: Tool guide.

Paket makroları

Her makronun ürettiği teknik geometri ve gerçek parça fotoğrafı.

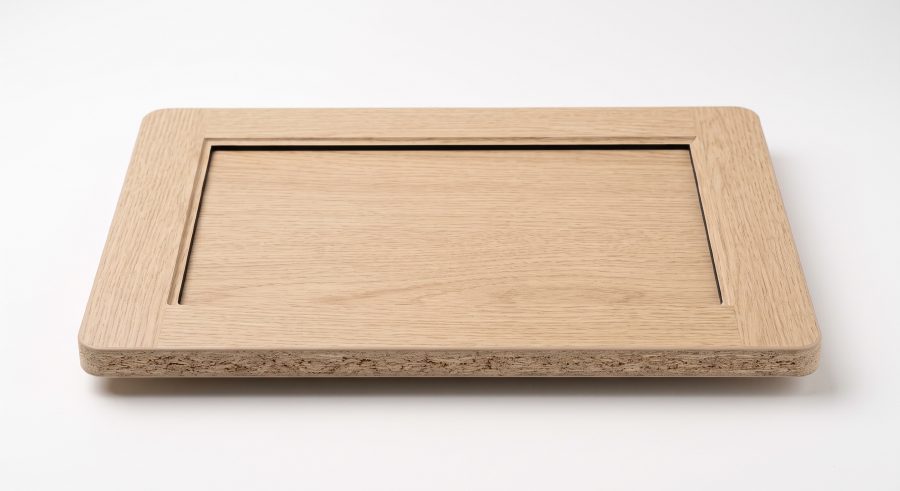

Çerçeveli Kapak — gerçek fotoğraf — Çerçeveli Kapak

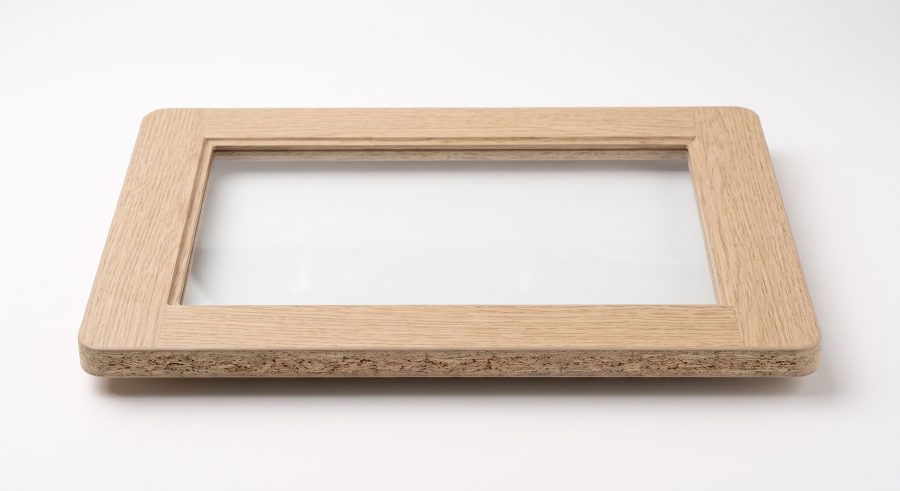

Camlı Kapak — gerçek fotoğraf — Camlı Kapak

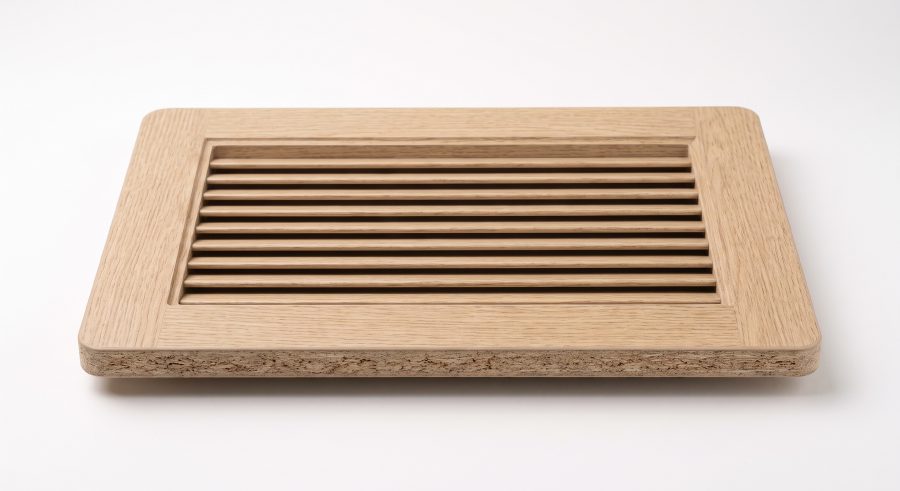

Panjurlu Kapak — gerçek fotoğraf — Panjurlu Kapak

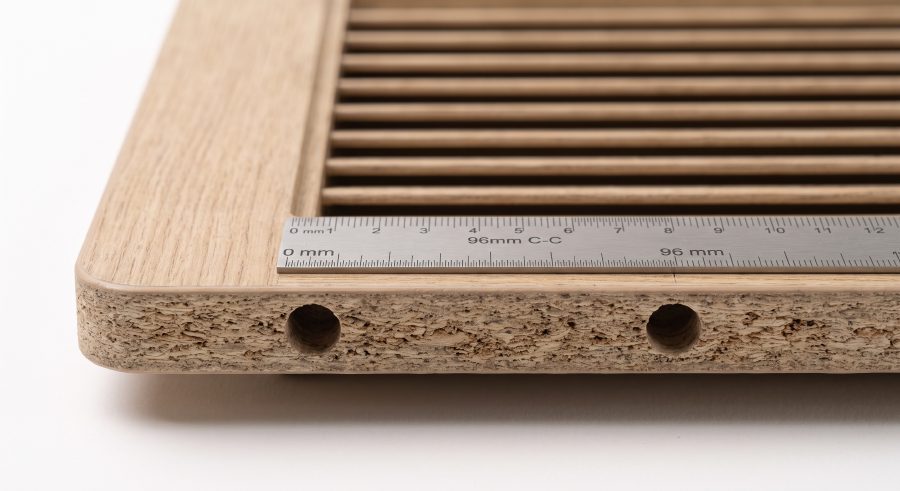

Kulp Deliği — gerçek fotoğraf — Kulp Deliği

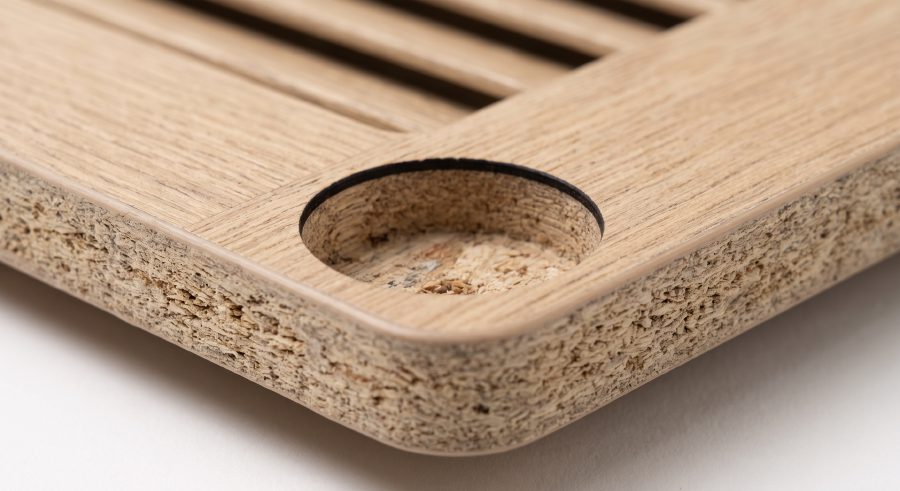

Menteşe Deliği (Ø35) — gerçek fotoğraf — Menteşe Deliği (Ø35)

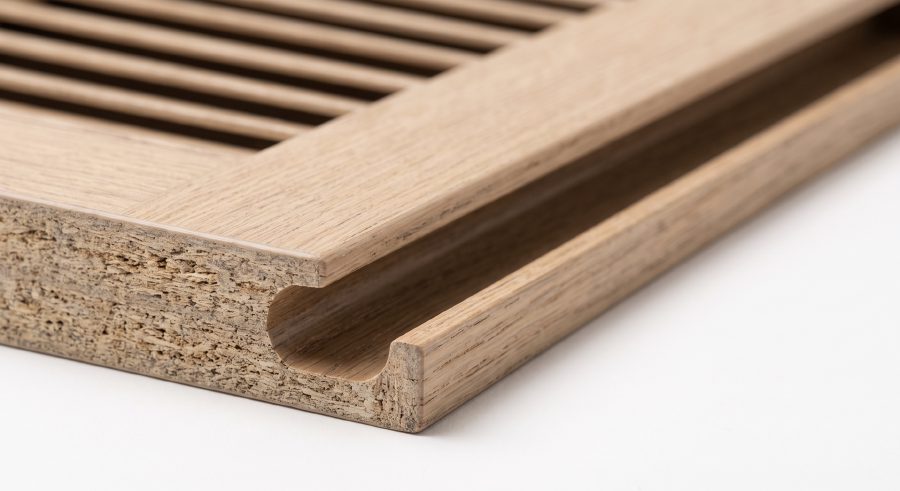

Parmak Kanalı — gerçek fotoğraf — Parmak Kanalı

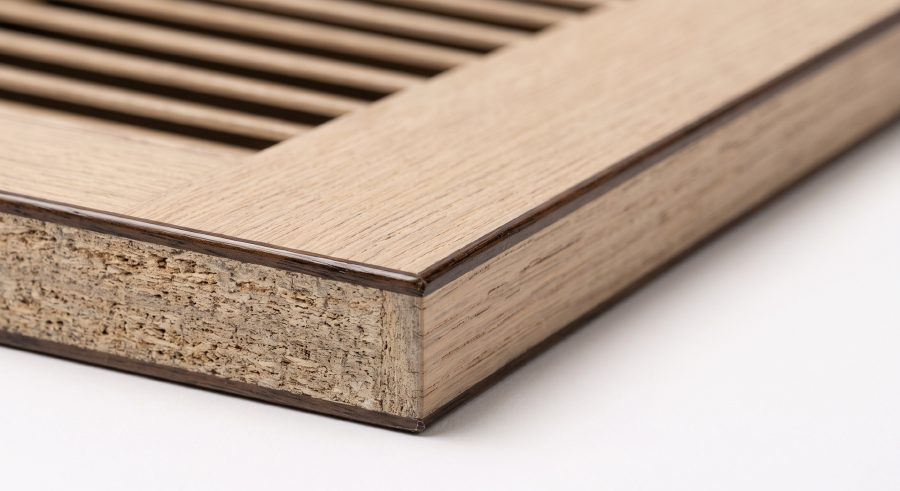

Kenar Bandı — gerçek fotoğraf — Kenar Bandı

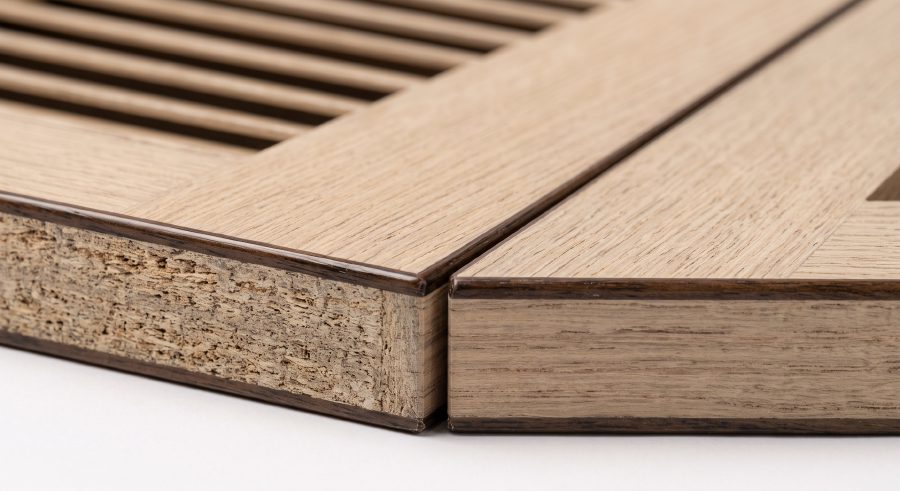

Kapak Ölçü Hesabı — gerçek fotoğraf — Kapak Ölçü Hesabı

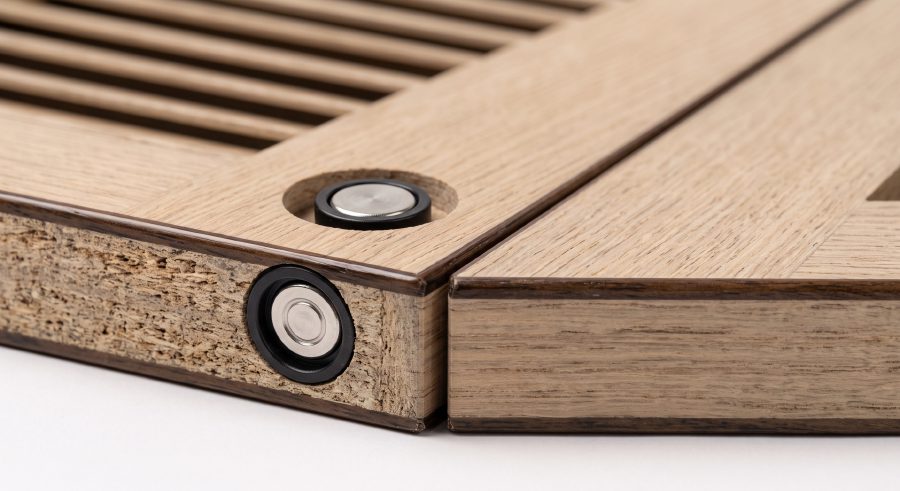

Bas-Aç Deliği — gerçek fotoğraf — Bas-Aç Deliği

Which door types?

The macros draw the door as geometry; the finish (membrane, lacquer, veneer) is your process. Common door types and the macro used for each:

Membrane (vinyl-wrapped) door: Outer contour + surface pattern: Framed Door (edge allowance, profile width, corner type) or Plain Door; holes with Handle, Hinge (Ø35), Push-to-open. Pattern depth and inner radius are parameters set for your membrane press.
Balloon door: Domed membrane door: outer contour, edgeband allowance and holes with the same macros as a flat membrane door; the domed surfacing is added with your own Alphacam operation.
Panel / raised-panel door: Panel look in one MDF piece: Framed Door draws the inner line; for multiple inner offsets use Panel Door Design in the GMacros add-in.
American door: Multi-panel, profiled-edge look: panels derived from the door size with Framed Door; the profile line lands on its own layer for a different cutter.
Lacquered door: Same geometry as membrane; sharp corners and deep profiles are allowed, so the corner type is set to "square". Same macros.
Glazed door: Glazed Door macro: through-cut opening (KESIM) + glass rebate pocket from the back (CEP); frame width, glass allowance and rebate depth are parameters.
Louvred door: Louvred Door macro: equal pitch from door height, slat count and width; groove series on KANAL.
Handleless door: Finger Groove (grip groove on the back) and Push-to-open Hole macros; handle holes skipped.

License

License term: 1 year — renew from the panel before it expires.
A key works on one computer at a time; buy one unit per computer.
Activation requires an internet connection; the key is not asked again during the license term.
When you change computers, a free new key is issued through a reinstallation request in the panel.

Frequently asked

Which CNC routers do the door macros work on?

Any machine with an Alphacam post-processor: Biesse, Homag/Weeke, SCM, Masterwood, local builders. The macros write into the Alphacam drawing; your post produces the NC for the machine.

Which layers does the drawing land on — is it Auto Style compatible?

KESIM, KANAL, CEP, DELIK and ETIKET. Define your Auto Style rule for those names once; every door the macro draws is then machined with one command.

Can I enter my own dimension list in bulk?

Yes; width × height × quantity rows are entered on the form and the last constants (band allowance, hinge distance) are remembered. The series is drawn in one go.
